| Under Frame | H-beam |
| Frame Structure | Sidewall 16mm Steel Plate |
| Connect Bar | 25mm Galvanized Steel |
| Screw & Bolt | 8.8 Standard |
| Bearing Type | 6210 Standard |
| Transmission | By chain, width 1.0inch |
| Driving Motor | 5.5KW |
| Reduction Type | 8# 1/59 |
| Voltage Standard | 380V 50HZ 3Phases |
| Forming Roller Station | 23 Steps |
| Forming Rollers Info | High grade 45# Steel ,precision polishing after CNC lathe and then with hard chromed plated 0.05 mm,much more brighter (Key-way method) |
| Forming Roller Shafts Info | High grade 45# Steel ,precision polishing after lathe with Key-way method |
| PLC Control System | Delta PLC , Delta inverter, HIM Screen Operation,Standard lower voltage components, |
| Hydraulic Pump Station | 3.0KW (Lichao Brand,Shanghai) with Valve (Huade Brand,Beijing) |

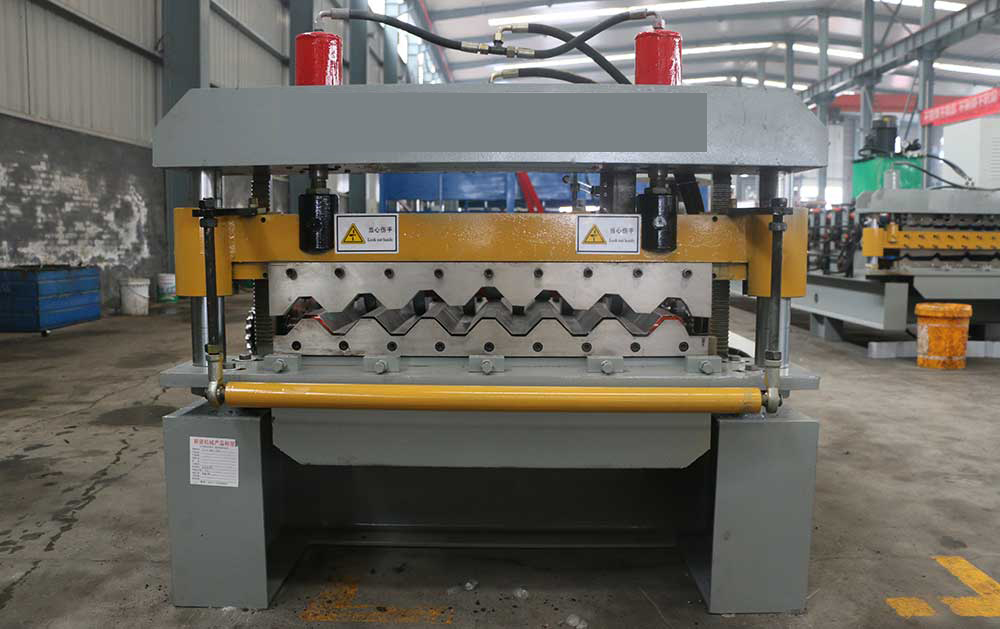

| Hydraulic Cutting System | Steel plates welded, guide pillar type for long life cutting, |
| Cutting Blade Material | Cr12Mov with heat treatment |
| Cutting Tolerance | 10M±1mm by inverter/PLC control |
